What is econometrics?

"The application of statistical and mathematical methods to the analysis of economic data, with the purpose of giving empirical content to economic theories and verifying them or refuting them."

A prominent tool: regression

Basics of OLS

Amsterdam house data

amsterdam_house_df <- read_rds("https://raw.githubusercontent.com/MarcellGranat/big_data2022/main/econometrics_files/amsterdam_house.rds")
# source: https://www.kaggle.com/datasets/thomasnibb/amsterdam-house-price-prediction

## # A tibble: 924 × 7
##    Address                                Zip      Price  Area  Room   Lon   Lat
##    <chr>                                  <chr>    <dbl> <dbl> <dbl> <dbl> <dbl>
##  1 Blasiusstraat 8 2, Amsterdam           1091 CR 685000    64     3  4.91  52.4
##  2 Kromme Leimuidenstraat 13 H, Amsterdam 1059 EL 475000    60     3  4.85  52.3
##  3 Zaaiersweg 11 A, Amsterdam             1097 SM 850000   109     4  4.94  52.3
##  4 Tenerifestraat 40, Amsterdam           1060 TH 580000   128     6  4.79  52.3
##  5 Winterjanpad 21, Amsterdam             1036 KN 720000   138     5  4.90  52.4
##  6 De Wittenkade 134 I, Amsterdam         1051 AM 450000    53     2  4.88  52.4
##  7 Pruimenstraat 18 B, Amsterdam          1033 KM 450000    87     3  4.90  52.4
##  8 Da Costakade 32 II, Amsterdam          1053 WL 590000    80     2  4.87  52.4
##  9 Postjeskade 41 2, Amsterdam            1058 DG 399000    49     3  4.85  52.4
## 10 Van Ostadestraat 193 H, Amsterdam      1073 TM 300000    33     2  4.90  52.4
## # ℹ 914 more rows

Basics of OLS

What price do we expect, knowing the area of a given house?

Approach: ???

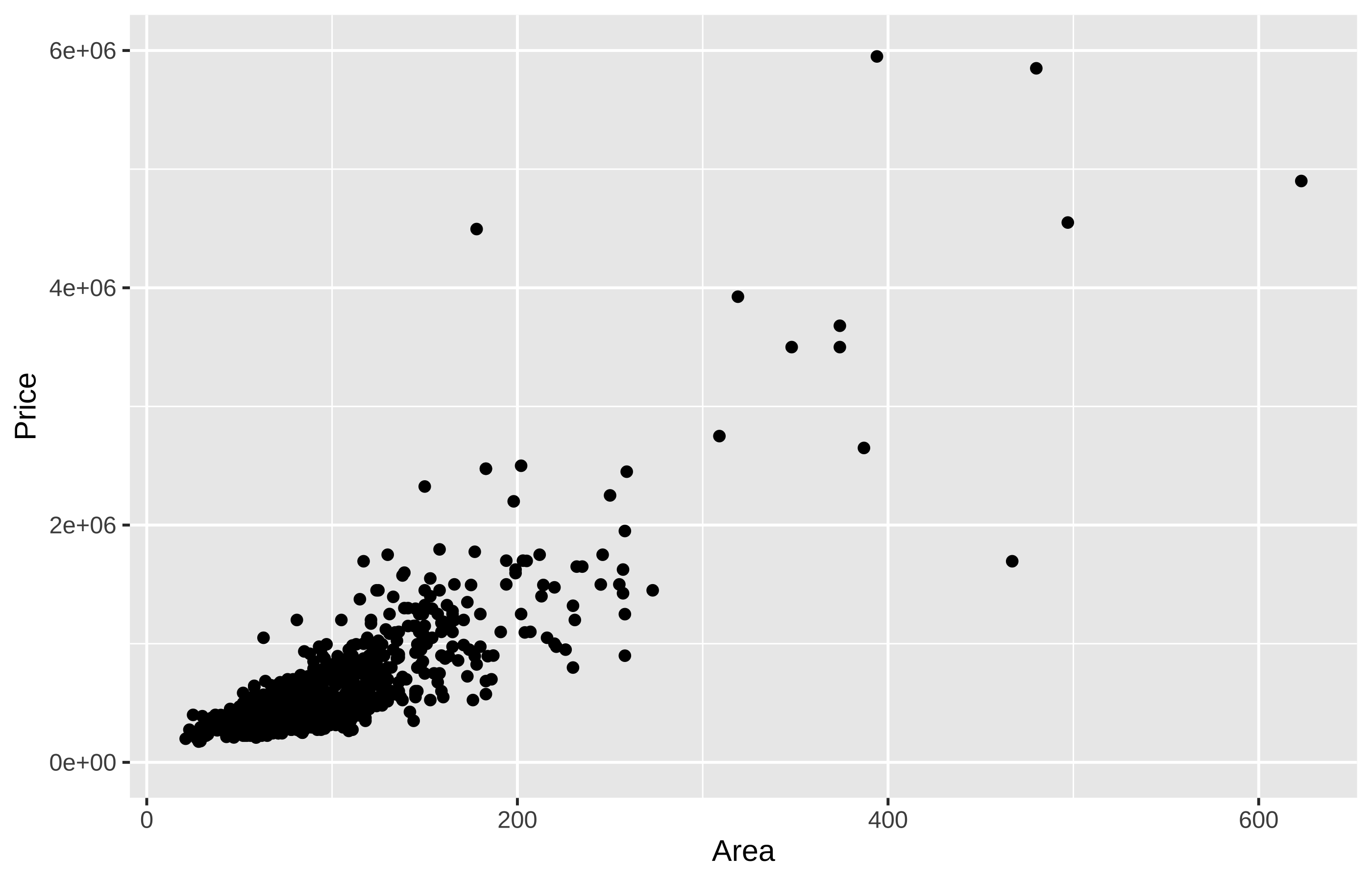

Amsterdam house data

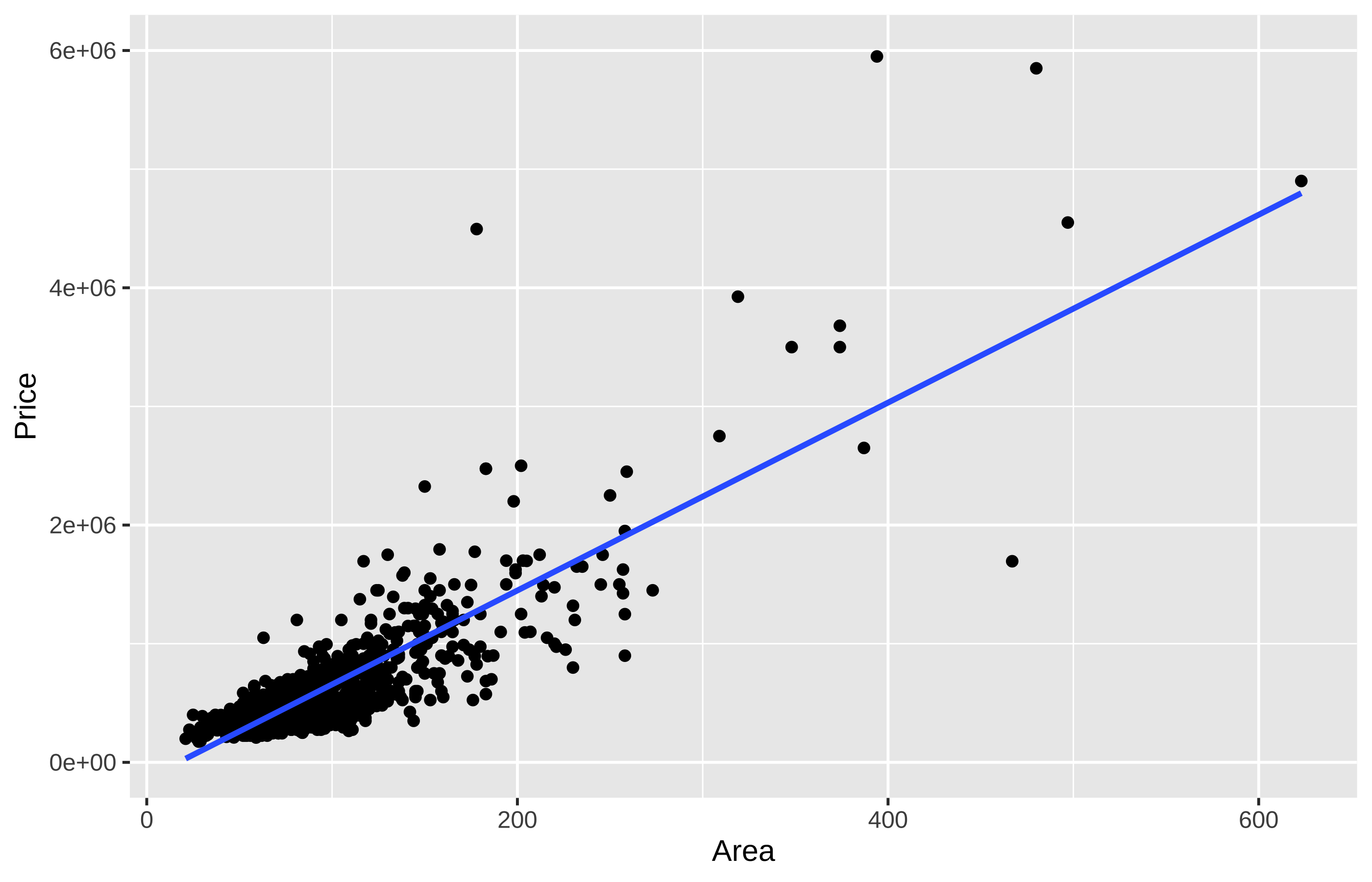

What price do we expect, knowing the area of a given house?

Approach: Let's fit a straight line.

Basics of OLS

What parameters do we have to know to draw the line?

$$Y_i = \beta_0 + \beta_1 \times X_i,$$

Basics of OLS

What parameters do we have to know to draw the line?

$$Y_i = \beta_0 + \beta_1 \times X_i + \epsilon_i,$$

How to choose the value of the intercept and the slope?

Minimize the error?

The result would be a line above the points...

Basics of OLS

What parameters do we have to know to draw the line?

$$Y_i = \beta_0 + \beta_1 \times X_i + \epsilon_i,$$

How to choose the value of the intercept and the slope?

Minimize the squared error?

Exactly, that is what OLS is about. OLS = Ordinary Least Squares

Basics of OLS

Let's calculate the sum of squared errors assuming two random values for the intercept and the slope

b0 <- 1000
b1 <- 200
amsterdam_house_df %>%
  transmute(
    Price,
    Area,
    fit = b0 + Area * b1,
    e = Price - fit,
    e2 = e^2
  ) %$%
  sum(e2, na.rm = TRUE)

## [1] 5.91045e+14

Basics of OLS

Let's transform this into a function

sse <- function(b0 = 1000, b1 = 200) {
  amsterdam_house_df %>%
    transmute(
      Price,
      Area,
      fit = b0 + Area * b1,
      e = Price - fit,
      e2 = e^2
    ) %$%
    sum(e2, na.rm = TRUE)
}
sse(1000, 200)

## [1] 5.91045e+14

Basics of OLS

Let's apply the function on large set of values

sse_df <- crossing(
  b0 = seq(from = 0, to = 1e4, length.out = 100),
  b1 = seq(from = 0, to = 1e4, length.out = 100)
) %>%
  mutate(
    sse = map2_dbl(b0, b1, sse)
  ) %>%
  arrange(sse)
sse_df

## # A tibble: 10,000 × 3
##       b0    b1     sse
##    <dbl> <dbl>   <dbl>
##  1    0  6869. 8.52e13
##  2  101. 6869. 8.52e13
##  3  202. 6869. 8.52e13
##  4  303. 6869. 8.52e13
##  5  404. 6869. 8.52e13
##  6  505. 6869. 8.52e13
##  7  606. 6869. 8.52e13
##  8  707. 6869. 8.52e13
##  9  808. 6869. 8.52e13
## 10  909. 6869. 8.52e13
## # ℹ 9,990 more rows

Basics of OLS

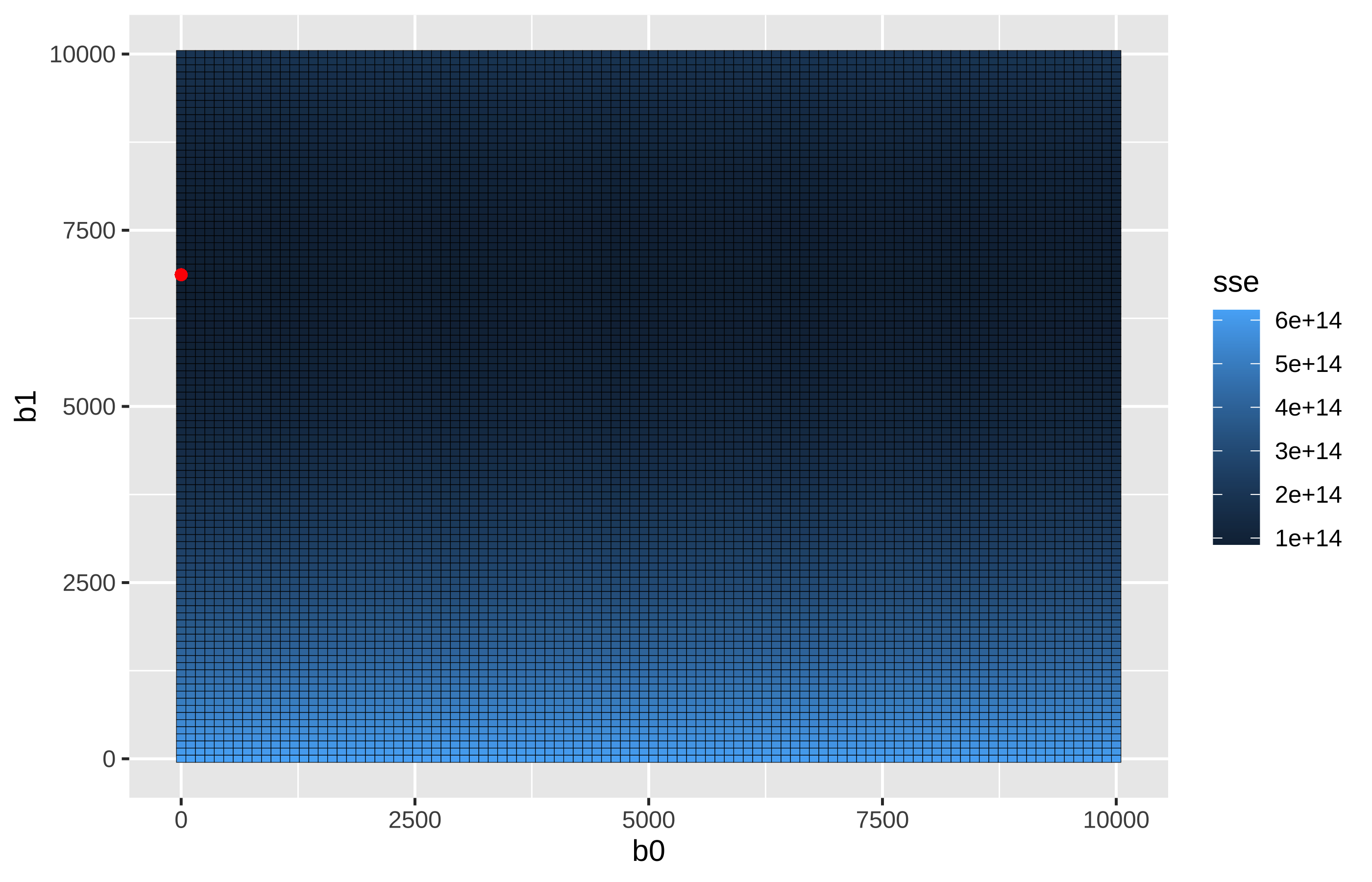

Let's apply the function on large set of values

Basics of OLS

Now we have run the function on 10,000 combination, but we are still not sure whether our solution is the best possible, or how far is it from that...

Fortunately, there is a much more efficient way to determine the line that produces the least squared errors

The normal equations:

$$\sum Y_i =n \times \beta_0+\beta_1 \sum X_i$$

$$\sum X_i Y_i =\beta_0 \sum X_i+\beta_1 \sum X_i^2$$

Basics of OLS

In our case:

amsterdam_house_df %>%
  drop_na(Price, Area) %>%
  summarise(n = n(), y = sum(Price), x = sum(Area),
            xz = sum(Price * Area), x2 = sum(Area^2))

## # A tibble: 1 × 5
##       n         y     x          xz       x2
##   <int>     <dbl> <dbl>       <dbl>    <dbl>
## 1   920 572300186 87959 78232126563 11379655

$$572,300,186 =920 \times \beta_0+\beta_1 \times 87,959$$

$$78,232,126,563 =\beta_0 \times 87,959+\beta_1 \times 11,379,655$$

Basics of OLS

Of course, there are a simpler solution for fitting a Linear Model

lm(formula = Price ~ Area, data = amsterdam_house_df)

##
## Call:
## lm(formula = Price ~ Area, data = amsterdam_house_df)
##
## Coefficients:
## (Intercept)         Area
##     -134910         7918

How to interpret the results?

1. A house with one additional m^2 in the area would cost € 7918 more

2. If the area would be zero, the price would be - 134910 (both parts are impossible, this is just a meaningless extrapolation)

Now we see the estimated coefficients (beta values), but what else can we extract?

Basics of OLS

The old-school (and disadvantageous) method

fit <- lm(formula = Price ~ Area, data = amsterdam_house_df)
summary(fit)

##
## Call:
## lm(formula = Price ~ Area, data = amsterdam_house_df)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -1867573  -159054    21513   126639  3220591
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept) -134909.9    19145.1  -7.047  3.6e-12 ***
## Area           7917.5      172.1  45.994  < 2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 296700 on 918 degrees of freedom
##   (4 observations deleted due to missingness)
## Multiple R-squared:  0.6974,    Adjusted R-squared:  0.697
## F-statistic:  2115 on 1 and 918 DF,  p-value: < 2.2e-16

Basics of OLS

The tidy method: {broom}

library(broom)
augment(fit)

## # A tibble: 920 × 9
##    .rownames  Price  Area .fitted   .resid    .hat  .sigma   .cooksd .std.resid
##    <chr>      <dbl> <dbl>   <dbl>    <dbl>   <dbl>   <dbl>     <dbl>      <dbl>
##  1 1         685000    64 371811.  313189. 0.00142 296650. 0.000795       1.06
##  2 2         475000    60 340141.  134859. 0.00151 296797. 0.000157       0.455
##  3 3         850000   109 728100.  121900. 0.00115 296804. 0.0000971      0.411
##  4 4         580000   128 878533. -298533. 0.00144 296667. 0.000731      -1.01
##  5 5         720000   138 957708. -237708. 0.00169 296727. 0.000545      -0.802
##  6 6         450000    53 284719.  165281. 0.00170 296781. 0.000264       0.558
##  7 7         450000    87 553914. -103914. 0.00111 296811. 0.0000684     -0.350
##  8 8         590000    80 498492.   91508. 0.00117 296816. 0.0000557      0.309
##  9 9         399000    49 253049.  145951. 0.00182 296792. 0.000221       0.492
## 10 10        300000    33 126368.  173632. 0.00241 296775. 0.000414       0.586
## # ℹ 910 more rows

Basics of OLS

The tidy method: {broom}

library(broom)
glance(fit)

## # A tibble: 1 × 12
##   r.squared adj.r.squared  sigma statistic   p.value    df  logLik    AIC    BIC
##       <dbl>         <dbl>  <dbl>     <dbl>     <dbl> <dbl>   <dbl>  <dbl>  <dbl>
## 1     0.697         0.697 2.97e5     2115. 1.71e-240     1 -12897. 25800. 25814.
## # ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>

Basics of OLS

The tidy method: {broom}

library(broom)
tidy(fit)

## # A tibble: 2 × 5
##   term        estimate std.error statistic   p.value
##   <chr>          <dbl>     <dbl>     <dbl>     <dbl>
## 1 (Intercept) -134910.    19145.     -7.05 3.60e- 12
## 2 Area           7918.      172.     46.0  1.71e-240

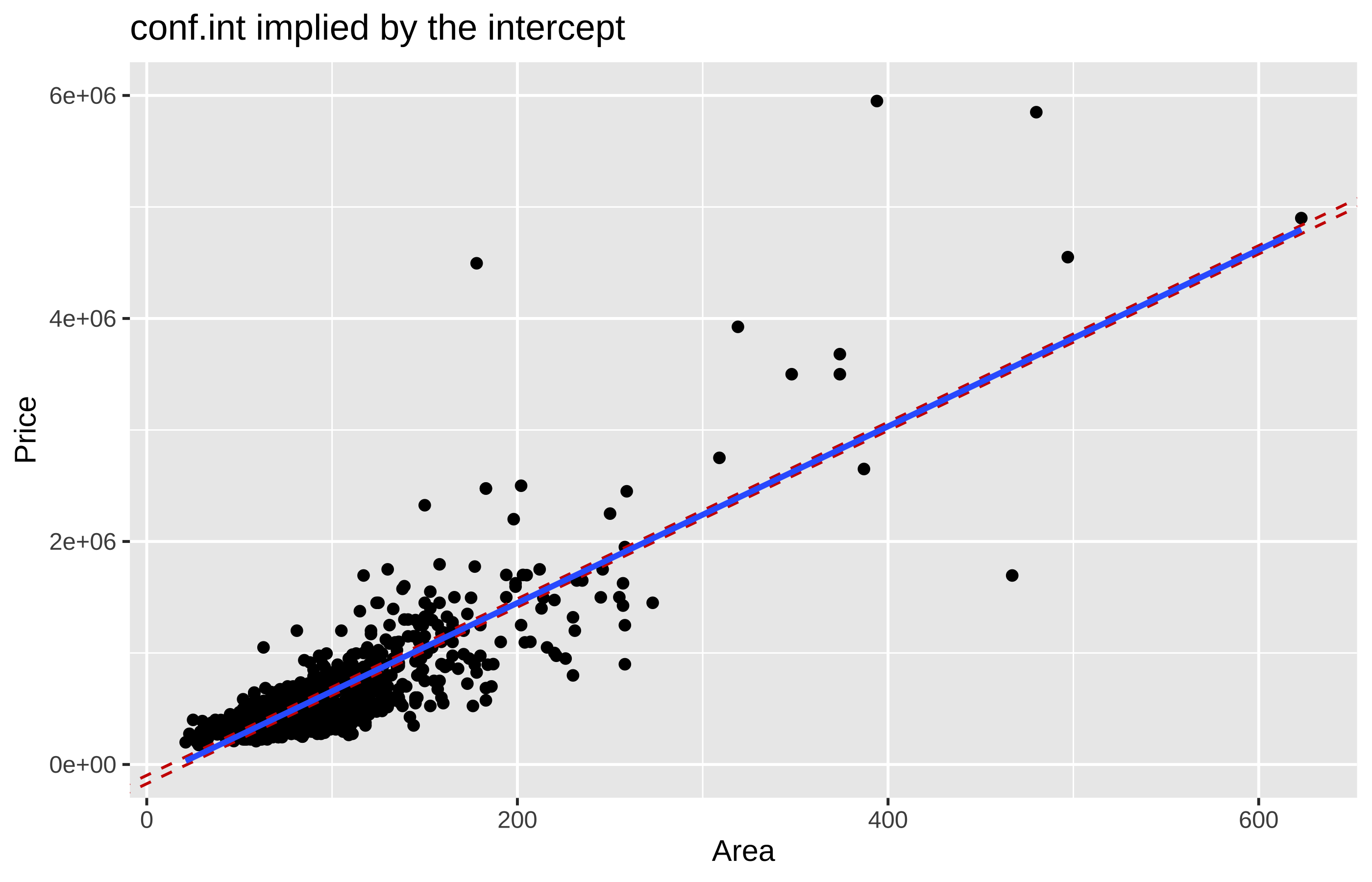

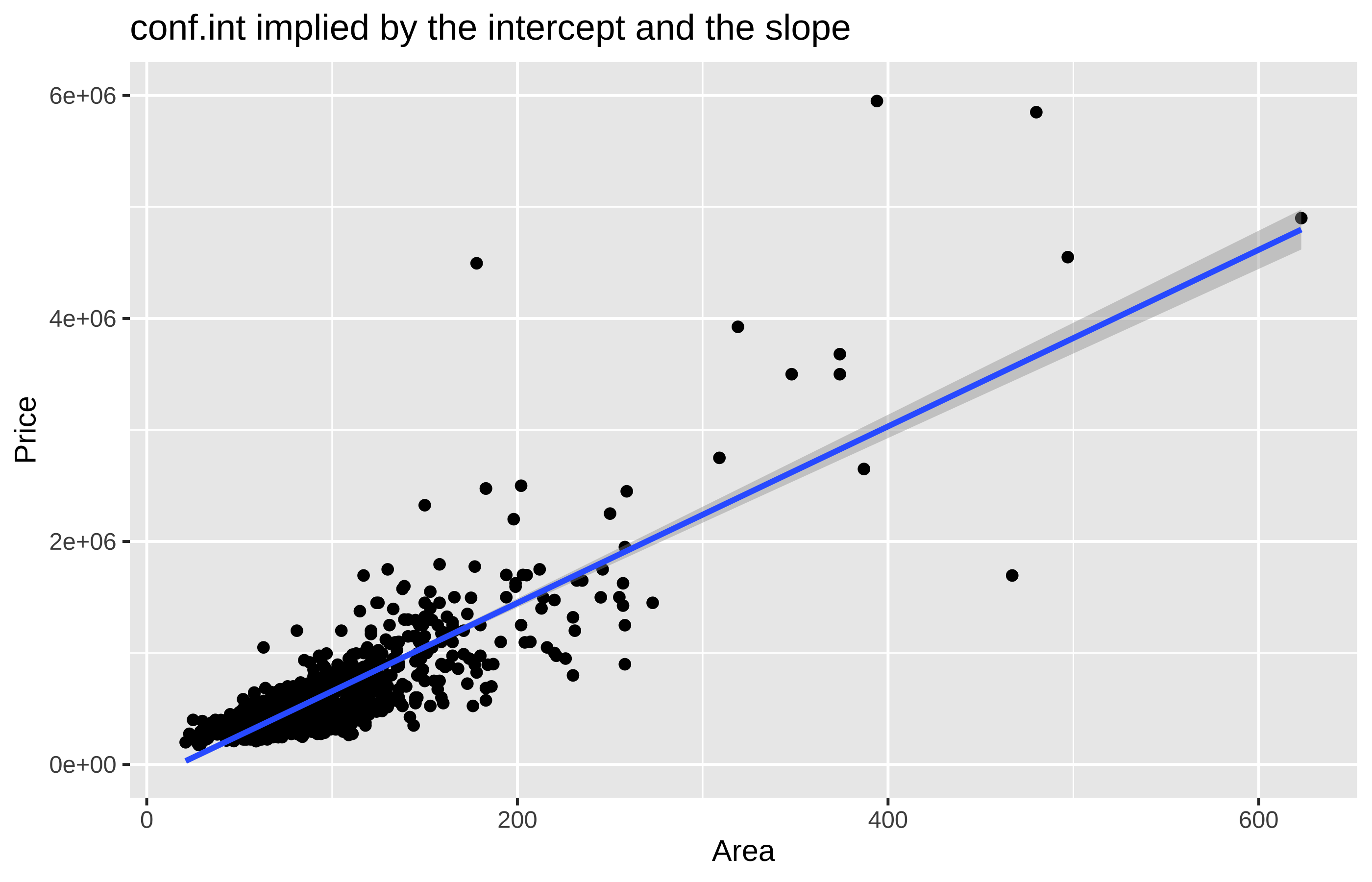

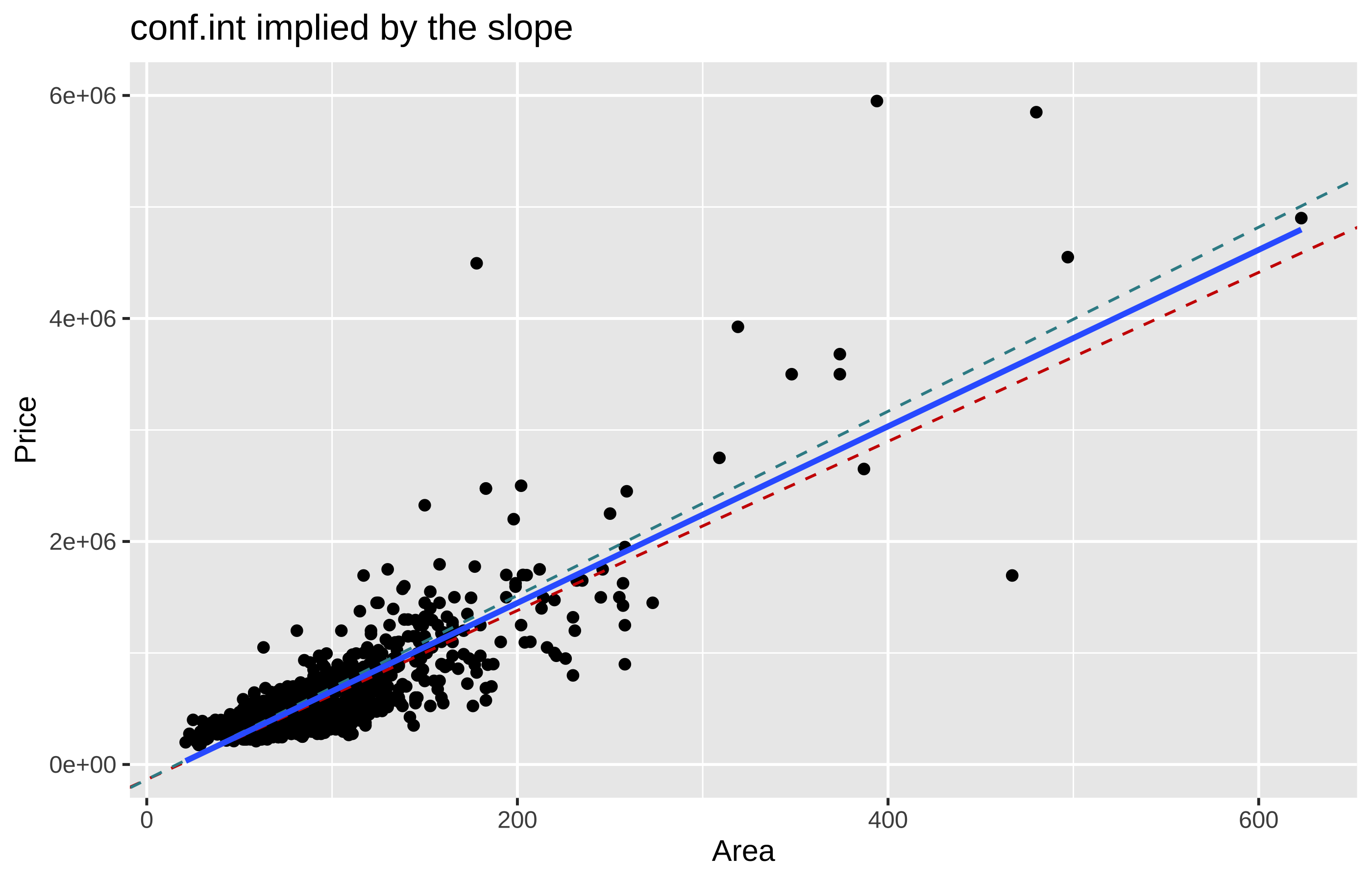

And yes, they have a confidence interval as well.

## # A tibble: 2 × 7
##   term        estimate std.error statistic   p.value conf.low conf.high
##   <chr>          <dbl>     <dbl>     <dbl>     <dbl>    <dbl>     <dbl>
## 1 (Intercept) -134910.    19145.     -7.05 3.60e- 12 -172483.   -97337.
## 2 Area           7918.      172.     46.0  1.71e-240    7580.     8255.

Basics of OLS

coef_df <- tidy(fit, conf.int = TRUE, conf.level = .95)

What is the standard error of the coef?

Let's create a function for the data-generating process (DGP), where coefficients can be specified.

dgp <- function(b0 = 100, b1 = 20, n = 100) {
  tibble(x = rnorm(n, sd = 3)) %>%
    mutate(y = b0 + b1 * x + rnorm(n, sd = 25))
}

Let's generate several trajectories with that.

tibble(data = rerun(5, dgp()))

## # A tibble: 5 × 1
##   data
##   <list>
## 1 <tibble [100 × 2]>
## 2 <tibble [100 × 2]>
## 3 <tibble [100 × 2]>
## 4 <tibble [100 × 2]>
## 5 <tibble [100 × 2]>

What is the standard error of the coef?

rerun(1e3, dgp()) %>% # 1000 generated trajectory
  tibble(data = .) %>%
  mutate(
    # the model
    fit = map(data, function(xx) lm(formula = y ~ x, data = xx)),
    tidied = map(fit, broom::tidy), # coeffients
    estimate = map(tidied, pull, 2), # estimation of the coef
    se = map(tidied, pull, 3), # SE of the coefs
    b0 = map_dbl(estimate, 1),
    b1 = map_dbl(estimate, 2),
    se_b0 = map_dbl(se, 1),
    se_b1 = map_dbl(se, 2),
  ) %>%
  summarise(
    mean(se_b0), # mean of the estimated SEs
    sd(b0), # sd of the point estimates
    mean(se_b1), # mean of the estimated SEs
    sd(b1), # sd of the point estimates
  )

## # A tibble: 1 × 4
##   `mean(se_b0)` `sd(b0)` `mean(se_b1)` `sd(b1)`
##           <dbl>    <dbl>         <dbl>    <dbl>
## 1          2.51     2.50         0.845    0.851

What is the standard error of the coef?

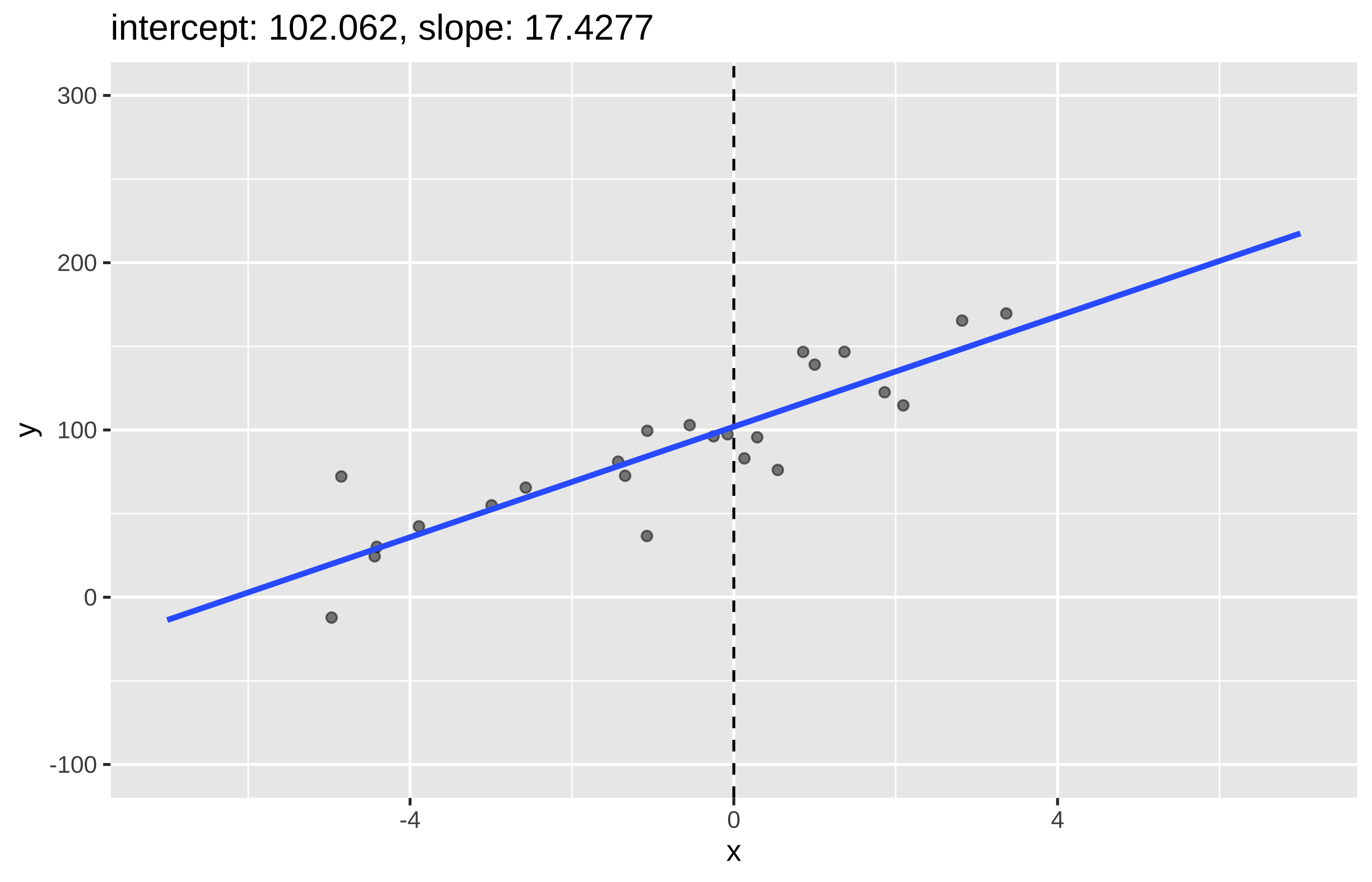

The visualization above shows the simulated data points with the previously created dgp. It can be seen that due to the random terms, the intercept and the slope will be slightly different for each trajectory. The standard deviations of the estimated parameters are the standard errors.

Basics of OLS

In the table containing the coefficients, a test statistic and a p-value are listed next to each term What hypothesis do they belong to?

$$H_0: \beta_j=0$$

How do we make a decision based on the p-value?

And what is the probability of committing a type I error?

Alpha.

Type I error in regression

Let's run the previously created dgp function, but set b1 to 0. How often is the H0 rejected?

tibble(data = rerun(1e3, dgp(b1 = 0))) %>%
  mutate(
    fit = map(data, function(xx) lm(formula = y ~ x, data = xx)),
    tidied = map(fit, broom::tidy),
    pvalues = map(tidied, pull),
    b1_p = map_dbl(pvalues, 2)
  ) %>%
  summarise(rate_type1 = sum(b1_p < .05) / n())

## # A tibble: 1 × 1
##   rate_type1
##        <dbl>
## 1      0.053

Multivariate regression

• Let's say that Y does not only depend on one variable

• For instance, price can be determined based on the area size and the number of rooms

$$Y_i = \beta_0 + \beta_1 \times X_{i, 1} + \beta_2 \times X_{i, 2} + \epsilon_i,$$ where

$$X_i,2 = \text{The number of the rooms}$$

• Sure we could try to "find" the optimal coefficients as presented at the bivariate case, but the number of possibilities (infinity) increased a lot...

• The mathematical background of solving the minimization problem requires the knowledge of algebra

Visualisation

Multivariate regression

This is not covered by the course!

$$\mathbf{y}=\left[\begin{array}{c} y_1 \\ y_2 \\ \vdots \\ y_n \end{array}\right], \quad \mathbf{X}=\left[\begin{array}{ccccc} 1 & x_{11} & x_{21} & \ldots & x_{k 1} \\ 1 & x_{12} & x_{22} & \ldots & x_{k 2} \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 1 & x_{1 n} & x_{2 n} & \ldots & x_{k n} \end{array}\right], \quad \boldsymbol{\beta}=\left[\begin{array}{c} \beta_0 \\ \beta_1 \\ \vdots \\ \beta_k \end{array}\right], \:\:\:\; \boldsymbol{\varepsilon}=\left[\begin{array}{c} \varepsilon_1 \\ \varepsilon_2 \\ \vdots \\ \varepsilon_n \end{array}\right]$$

$$\mathbf{e}^{\mathrm{T}} \mathbf{e}=(\mathbf{y}-\mathbf{X} \hat{\boldsymbol{\beta}})^{\mathrm{T}}(\mathbf{y}-\mathbf{X} \hat{\boldsymbol{\beta}})$$

$$\hat{\boldsymbol{\beta}}=\left(\mathbf{X}^{\mathrm{T}} \mathbf{X}\right)^{-1} \mathbf{X}^T \mathbf{y}$$

Multivariate regression

fit <- lm(formula = Price ~ Area + Room, data = amsterdam_house_df)
fit

##
## Call:
## lm(formula = Price ~ Area + Room, data = amsterdam_house_df)
##
## Coefficients:
## (Intercept)         Area         Room
##      -62040         9057       -51009

Multivariate regression

##
## Call:
## lm(formula = Price ~ Area + Room, data = amsterdam_house_df)
##
## Coefficients:
## (Intercept)         Area         Room
##      -62040         9057       -51009

Can this result be interpreted as if a house has more rooms, it is cheaper?

Of course not.

Multivariate regression

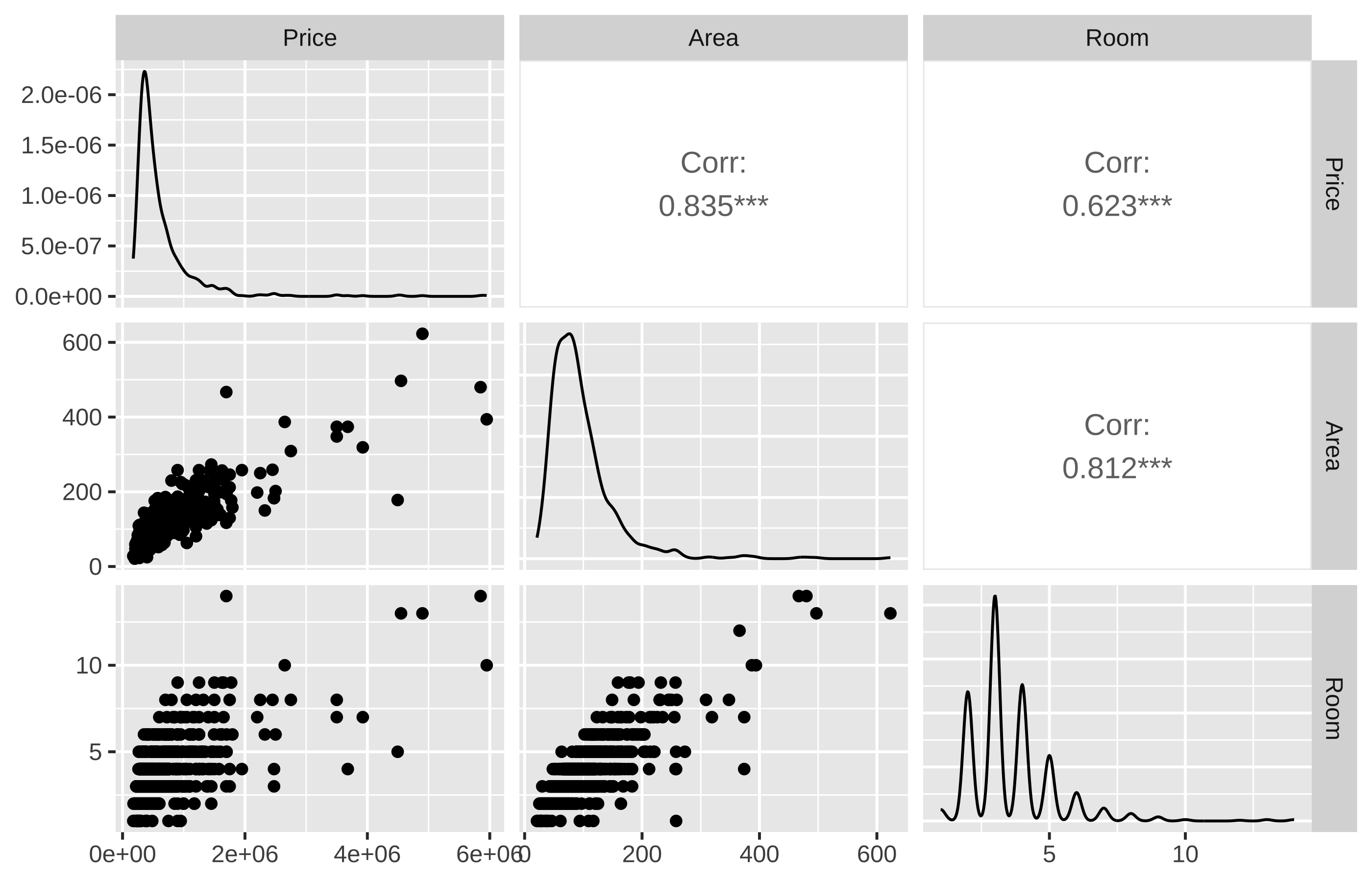

Multicollinearity

form <- c("Price ~ Area", "Price ~ Area + Room", "Price ~ Room",
          "Area ~ Room", "Room ~ Area"
)

tibble(form) %>%
  mutate(
    fit = map(form, lm, data = drop_na(
      amsterdam_house_df,
      Price, Area, Room)
    ),
    tidied = map(fit, broom::tidy)
  ) %>%
  unnest(tidied) %>%
  select(form, term, estimate) %>%
  pivot_wider(names_from = term, values_from = estimate)

## # A tibble: 5 × 4
##   form                `(Intercept)`      Area     Room
##   <chr>                       <dbl>     <dbl>    <dbl>
## 1 Price ~ Area           -134910.   7918.         NA
## 2 Price ~ Area + Room     -62040.   9057.     -51009.
## 3 Price ~ Room           -140283.     NA      213895.
## 4 Area ~ Room                 -8.64   NA          29.2
## 5 Room ~ Area                  1.43    0.0223     NA

Path analysis

1. Total effect: If we want to buy a house with one additional room, it is expected to cost 213,895 euros more.

2. Indirect effect: A house with 1 additional room would be expected to be 29.2 square meters larger, and the average price per square meter is 9,057 euros.

3. Direct effect: If we compare houses with exactly the same area size, then the one with one extra room would cost 51009 euros less.

Type I error in multivariate model

Let's create a function for a new DGP wtih two regressors.

dgp_multi <- function(b0 = 100, b1 = 0, b2 = 0, n = 100) {
    tibble(x1 = rnorm(n, sd = .8), x2 = rnorm(n, sd = 5)) %>%
    mutate(y = b0 + b1 * x1 + b2 * x2 + rnorm(n))
  }
dgp_multi()

## # A tibble: 100 × 3
##         x1       x2     y
##      <dbl>    <dbl> <dbl>
##  1 -0.997    0.0555  99.8
##  2 -0.0509   4.94    98.0
##  3  0.813    0.892  100.
##  4  0.311    4.24   100.
##  5 -0.716    4.10   101.
##  6 -0.0961   4.99   100.
##  7 -1.73     3.38   101.
##  8  0.122   -2.19   102.
##  9  0.540  -17.6     99.4
## 10  0.335   -0.272   98.4
## # ℹ 90 more rows

Type I error in multivariate model

tibble(data = rerun(1e3, dgp_multi())) %>%
  mutate(
    fit = map(data, function(xx) lm(y ~ x1 + x2, data = xx)),
    tidied = map(fit, broom::tidy),
    pvalues = map(tidied, pull),
    p_b1 = map_dbl(pvalues, 2),
    p_b2 = map_dbl(pvalues, 3),
    error_commited = p_b1 < .05 | p_b2 < .05
  ) %>%
  summarise(sum(error_commited) / n())

## # A tibble: 1 × 1
##   `sum(error_commited)/n()`
##                       <dbl>
## 1                     0.096

We run two test at each model!

At each the probability of commiting a type I error is 5%.

The joint probability to not commit type I error is:

$$1 - .95 \times .95 = 0.0975$$

Type I error in multivariate model

As more and more variables are included in the model, the probability of making a type 1 error increases.

In the case of many variables, even if the outcome variable is not related to any of them, we will still find a significant parameter.

Solution: F-test

F-test

Testing whether the explanatory variables jointly explain the variance significantly:

$$\beta_1=\beta_2=\cdots=\beta_k=0$$

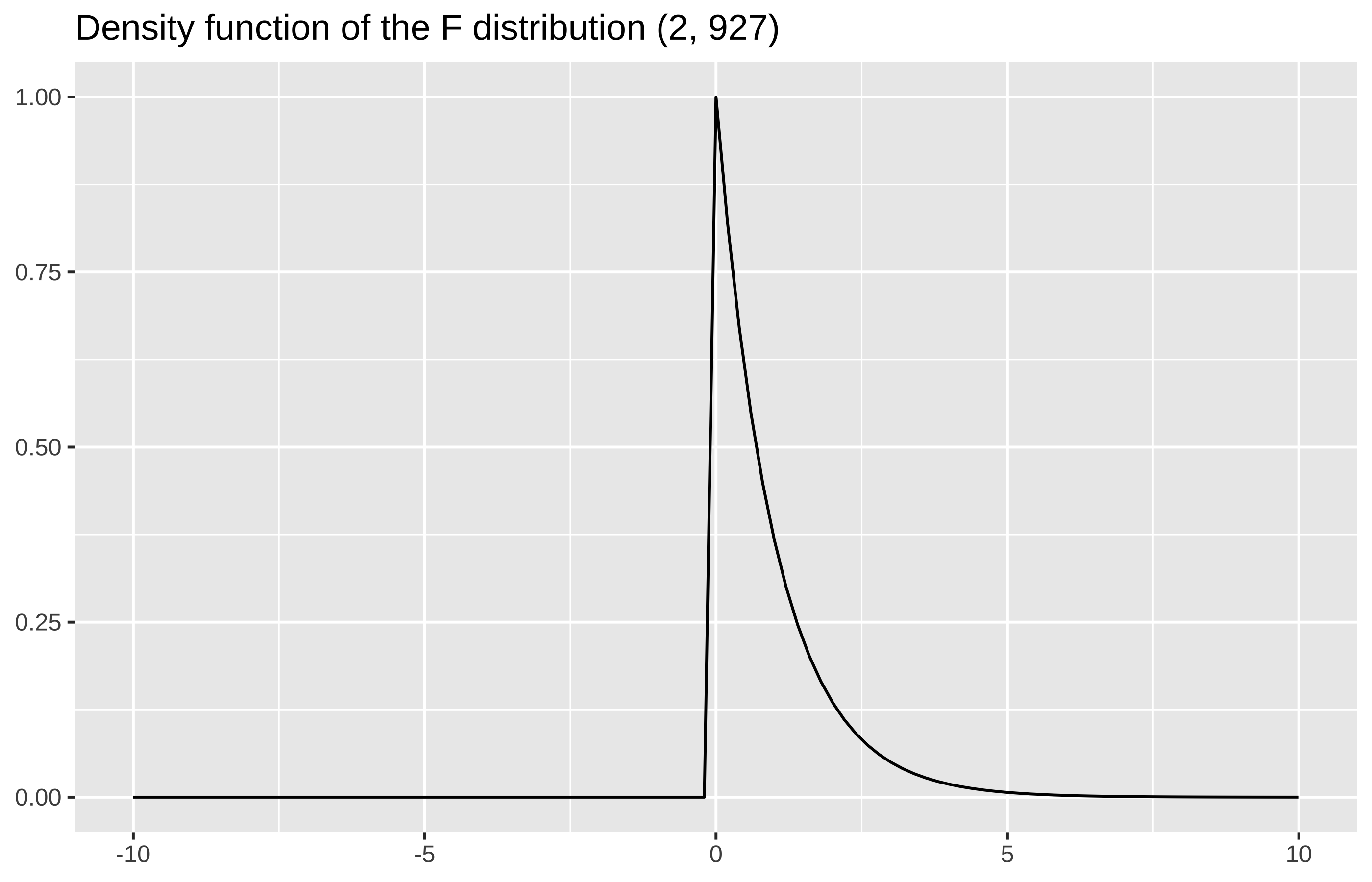

F-test

broom::glance(fit)

## # A tibble: 1 × 12
##   r.squared adj.r.squared  sigma statistic   p.value    df  logLik    AIC    BIC
##       <dbl>         <dbl>  <dbl>     <dbl>     <dbl> <dbl>   <dbl>  <dbl>  <dbl>
## 1     0.705         0.704 2.93e5     1096. 7.71e-244     2 -12885. 25778. 25797.
## # ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>
